Yagami.jl is a Julia package for 2D atmospheric ray tracing and related support calculations used in the CAIRT workflow. The package combines ellipsoidal Earth geometry, refractive-index models for air, atmospheric field interpolation, file readers for existing mission data formats, and Curtis-Godson-style quadrature utilities.

At the top level, Yagami re-exports the parts of the package that are most useful for scientific workflows:

  • ellipsoid and datum utilities from YagamiCore
  • refractive-index models from MaterialProperties
  • atmosphere construction, file readers, and tracing kernels from RayTracing
  • quadrature helpers from CurtisGodson

Package Map

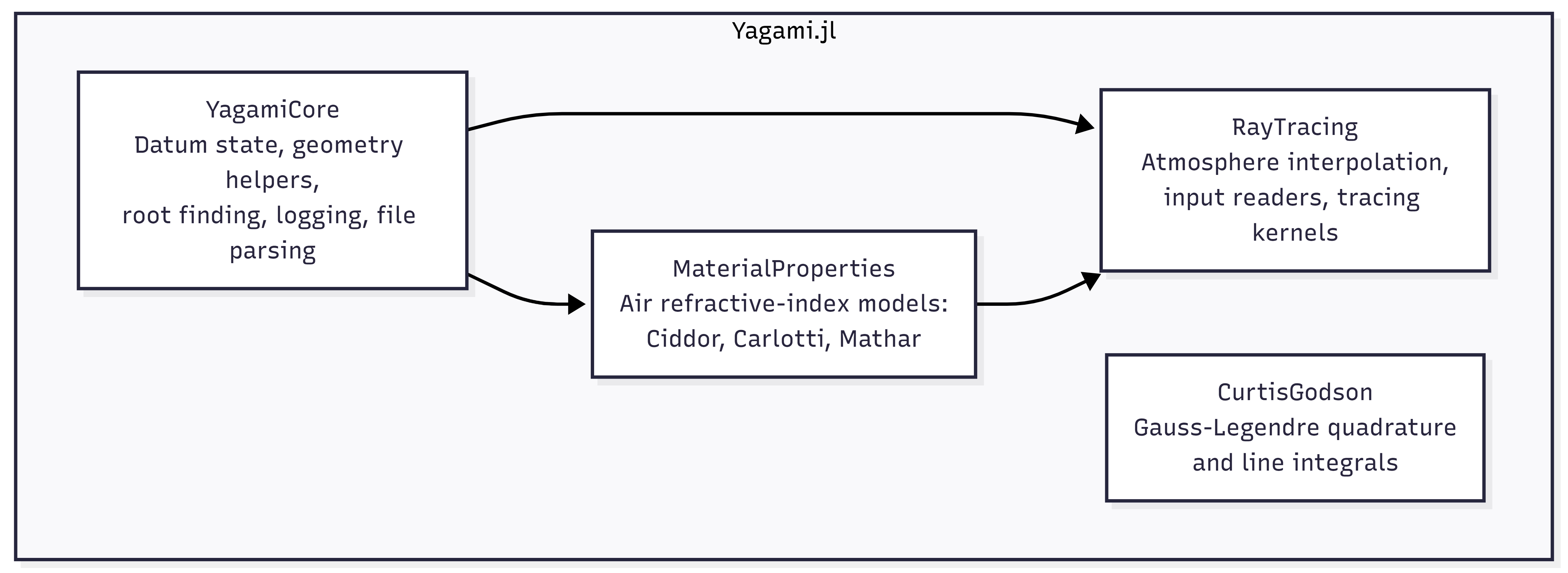

Flowchart

Typical Workflow

The main package workflow is:

  1. Load or construct atmospheric fields.
  2. Convert those fields into an AtmosphereSetting.
  3. Build a refractive-index grid over wedge cells.
  4. Trace each line of sight through the atmosphere.
  5. Post-process the sampled ray path or integrate along it.

In practice, that usually means either:

  • calling RayTracingProblem(path) to read an existing dataset, or
  • building an atmosphere manually with create_atmosphere

Quick Start

Refractive Index

Use MaterialProperties directly when you only need the refractive index of air at a given state:

using Yagami

n = refractive_index(Ciddor(), 288.15, 101325.0, 10.0, 0.0, 450.0)

Current unit conventions in the code are:

  • temperature in K
  • pressure in Pa
  • wavelength in um
  • humidity as a fraction in [0, 1]
  • CO2 concentration in ppm

The code currently treats humidity as a fraction, even where some older docstrings still describe it as a percentage.

Build an Atmosphere

create_atmosphere converts gridded atmospheric fields into interpolation objects that the ray tracer can query at arbitrary azimuth and altitude.

using Yagami

θᵢ = create_radii(Float64; θmin=0.0, θmax=350.0, radii=36)
hᵢ = create_hlevelset(Float64; hmin=4.0, hmax=120.0, levels=20)

temperatureᵢ = [220.0 + 0.02 * θ - 0.6 * h for θ in θᵢ, h in hᵢ]
pressureᵢ = [101325.0 * exp(-h / 7.0) for θ in θᵢ, h in hᵢ]

atm = create_atmosphere(
    θᵢ=θᵢ,
    hᵢ=hᵢ,
    temperatureᵢ=temperatureᵢ,
    pressureᵢ=pressureᵢ,
    humidity=0.0,
    co2ppm=400.0,
    wavelength=10.0,
    knots_θ=θᵢ,
    knots_h=hᵢ,
)

n = grid_refractiveindex(atm; model=Ciddor())

Important grid conventions:

  • knots_h must be sorted in descending order
  • knots_θ must be sorted in ascending order
  • azimuth is periodic and wrapped into [0, 360)
  • pressure interpolation uses logarithmic interpolation in altitude

Read a Ray-Tracing Problem

When the input data already exists in a supported mission format, use RayTracingProblem:

using StructArrays
using Yagami

problem = RayTracingProblem("path/to/cairt.nc")

results = StructArray(fill(SimpleResult(), 200, problem.nlos * problem.nscans))
raytracing!(results, problem)

altitude_profile = altitudelocal(results, 1)
azimuth_profile = azimuthlocal(results, 1)

SimpleResult stores one sampled point along a ray, including:

  • point coordinates
  • direction vector
  • altitude and azimuth on the ellipsoid
  • path length increment
  • wedge indices i and j
  • flags describing whether the crossing was level-based and whether the ray was descending

Main Components

YagamiCore

YagamiCore provides the package-wide geometric and numerical foundation:

  • WGS84-based ellipsoid constants
  • mutable datum state via setdatum!, setmajoraxis!, setminoraxis!, and seteccentricity²!
  • geometric helpers for nadir and limb viewing conventions
  • Brent-style root-finding and minimization support
  • lightweight file and logger utilities used by the readers

The datum is stored in global references. If you change it, the new ellipsoid is used by later calculations in the current Julia session.

MaterialProperties

MaterialProperties implements the refractive-index models used by the ray tracer:

  • Ciddor() for visible to infrared air refractivity with humidity and CO2
  • Carlotti() for a simpler pressure/temperature-based model
  • Mathar013_025(), Mathar028_042(), Mathar043_052(), Mathar075_141(), and Mathar160_240() for wavelength-range-specific infrared models

The public interface is:

  • refractive_index(model, temperature, pressure, wavelength, humidity, co2ppm)
  • refractive_index!(model, out, temperature, pressure, wavelength, humidity, co2ppm)

RayTracing

RayTracing is the operational core of the package. It contains:

  • AtmInterpolate for atmospheric interpolation on azimuth-altitude grids
  • AtmosphereSetting for grouped temperature, pressure, humidity, CO2, and wavelength fields
  • grid_refractiveindex for cell-wise refractive-index grids
  • RayTracingProblem for a complete tracing setup
  • raytracing! and raytracing_parallel! for the tracing kernels
  • Earth-shape approximations Fukushima() and Bowring()

RayTracingProblem bundles:

  • the source filename or folder
  • the atmosphere object
  • the precomputed refractive-index grid
  • satellite positions and viewing directions
  • expected tangent heights and azimuths
  • scan and line-of-sight counts
  • an optional logger

CurtisGodson

CurtisGodson currently provides:

  • QuadraturePoints
  • get_quadrature_points
  • linintegral

These helpers are independent from the ray tracer and can be used anywhere a 1D Gauss-Legendre quadrature is needed.

Supported Input Formats

RayTracingProblem currently supports two input formats.

NetCDF via NCFormat()

RayTracingProblem("file.nc") defaults to NCFormat(). The reader expects a CAIRT-style NetCDF file with groups and variables used by the current code:

  • group scans with tangent points, scan azimuths, and view angles
  • group atm with z, phi, pressure, and temperature
  • group orbit with satellite radius

During import, the reader:

  • converts pressure from hPa to Pa
  • sorts altitude in descending order
  • wraps azimuth into [0, 360) and sorts it in ascending order
  • builds an AtmosphereSetting
  • precomputes the refractive grid used by the tracer

Geofit via GeofitFormat()

RayTracingProblem("folder", GeofitFormat()) expects a directory with INP_FILES/ containing at least:

  • in_alt.dat
  • in_lat.dat
  • in_pres.dat
  • in_temp.dat
  • in_vmr_prof.dat

and also uses:

  • in_levels.dat
  • in_radii.dat
  • orbit.dat

The Geofit reader converts the legacy text files into the same RayTracingProblem representation used by the NetCDF path.

Current Implementation Notes

There are a few details that are useful to know when using the current package:

  • RayTracingProblem(...; model=..., meantype=...) stores those choices on the problem object, but the current NetCDF and Geofit readers precompute problem.refractive with Ciddor() and GeometricMean() internally.
  • earthmodel is used by the tracing kernels and currently has the clearest effect on runtime behavior.
  • The low-level constructors are more flexible than the file readers. If you need tighter control over atmospheric fields or refractive-grid generation, build an AtmosphereSetting and call grid_refractiveindex explicitly.

References

Python scripts used to validate the material-property models are adapted from the Refractive Index Database created by Mikhail Polyanskiy.[1]
